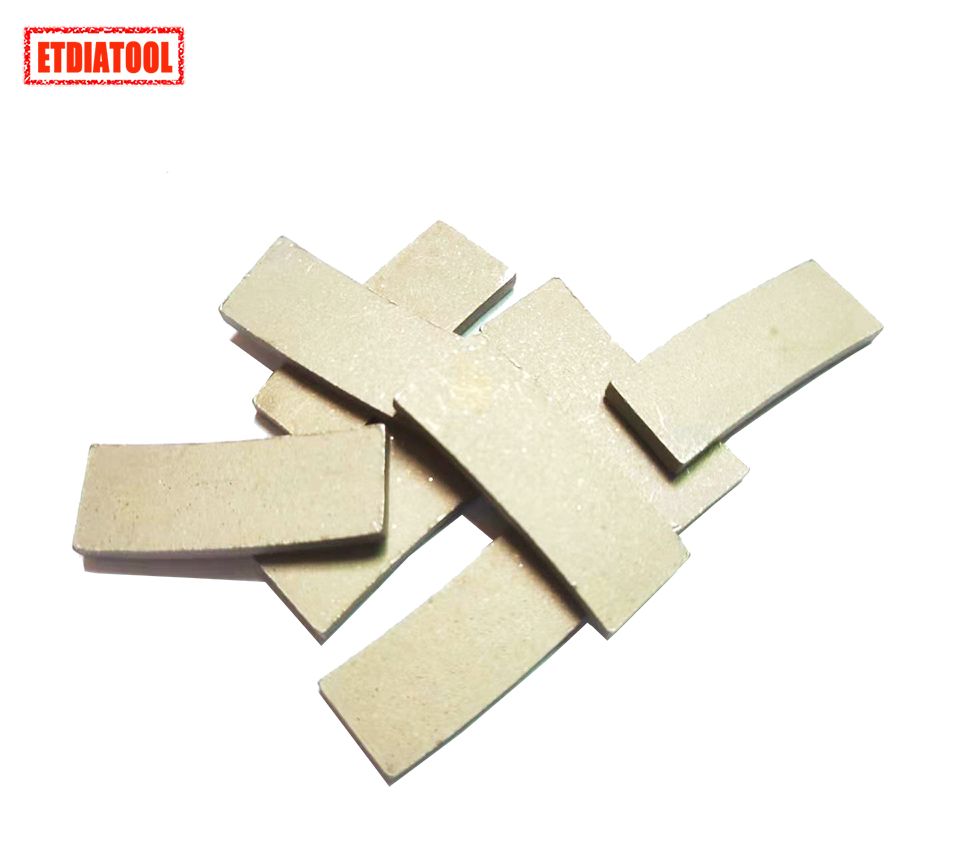

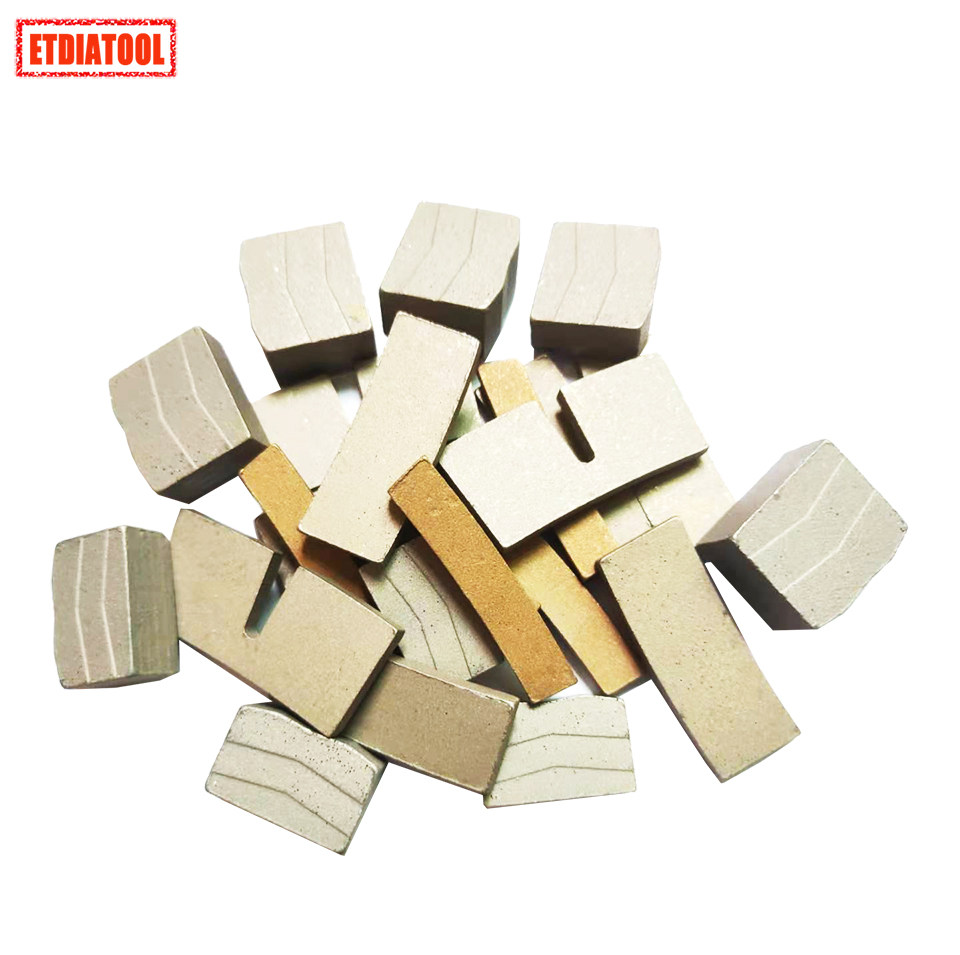

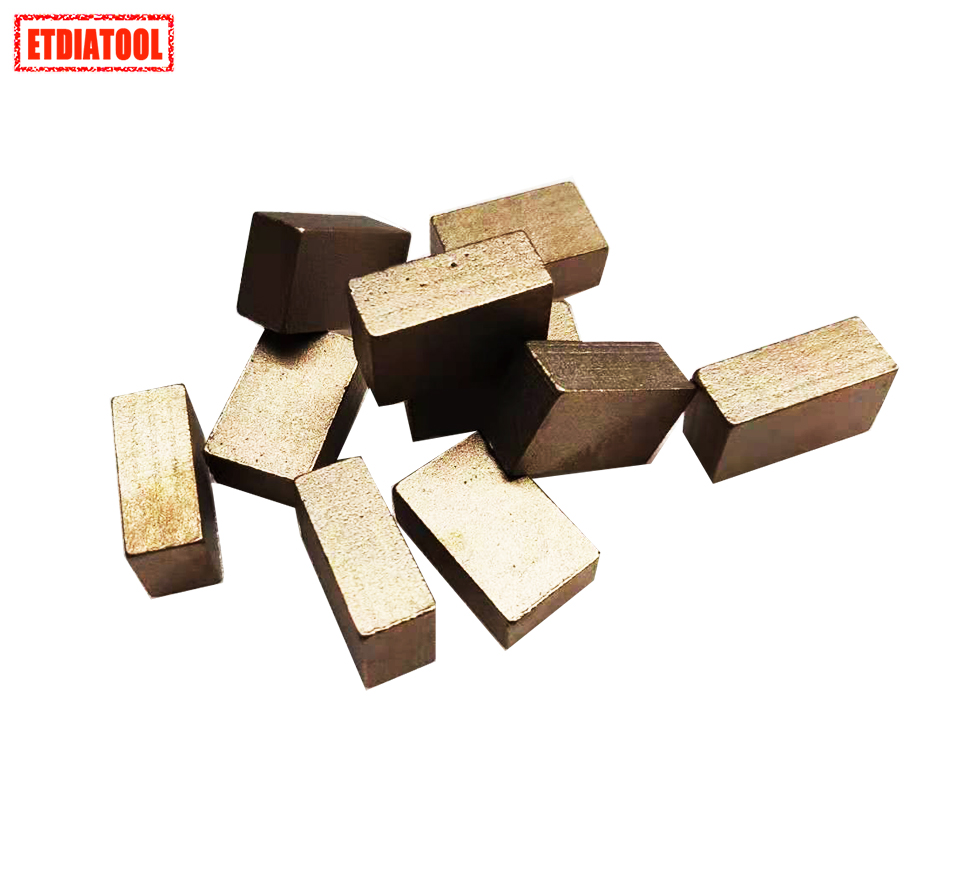

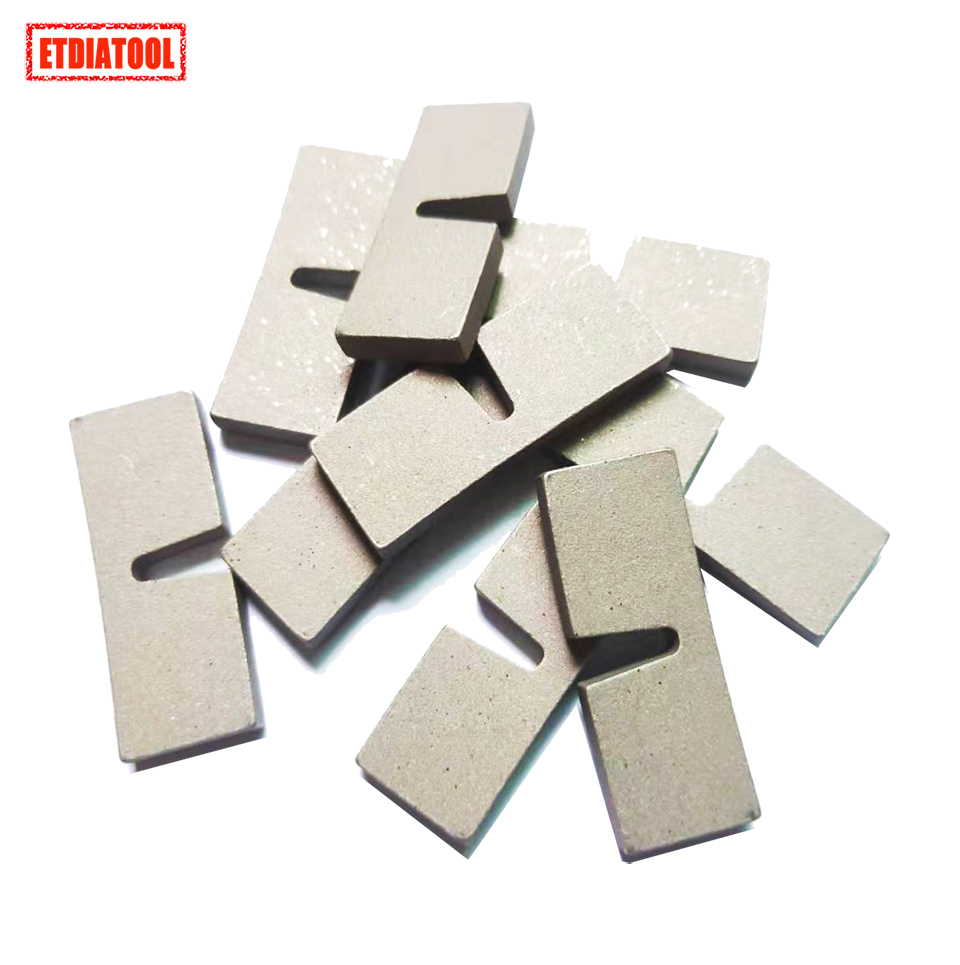

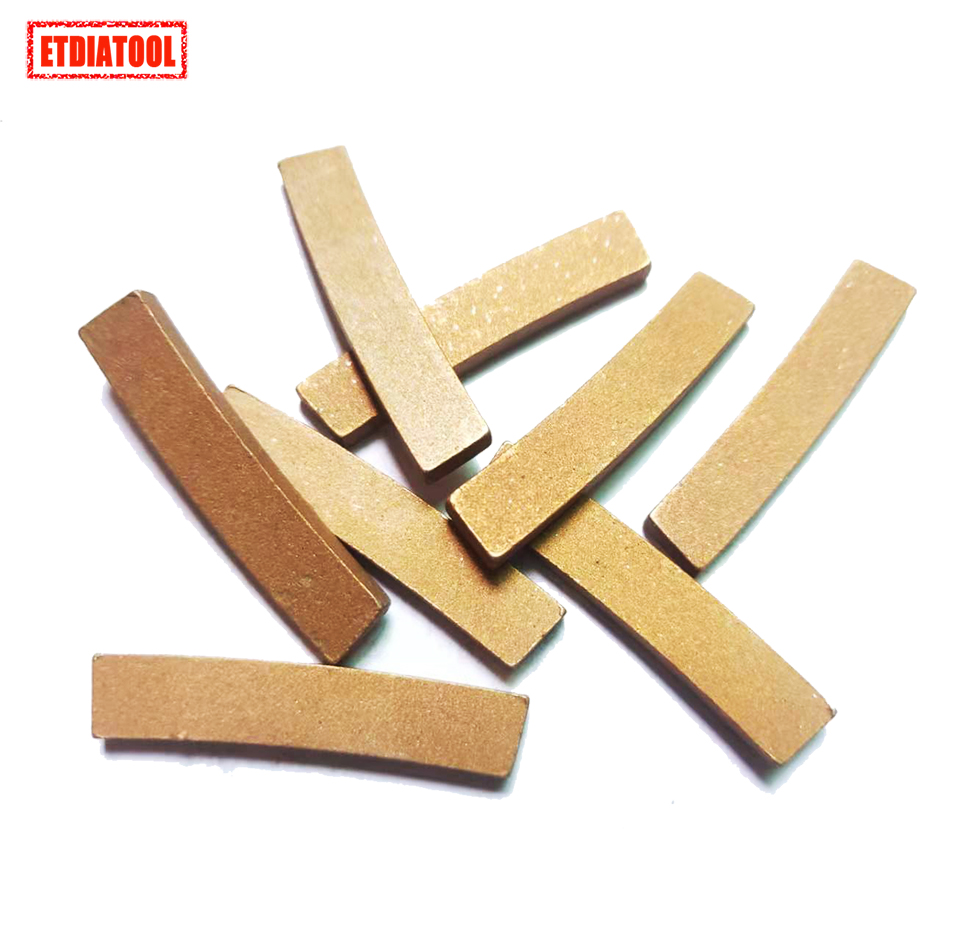

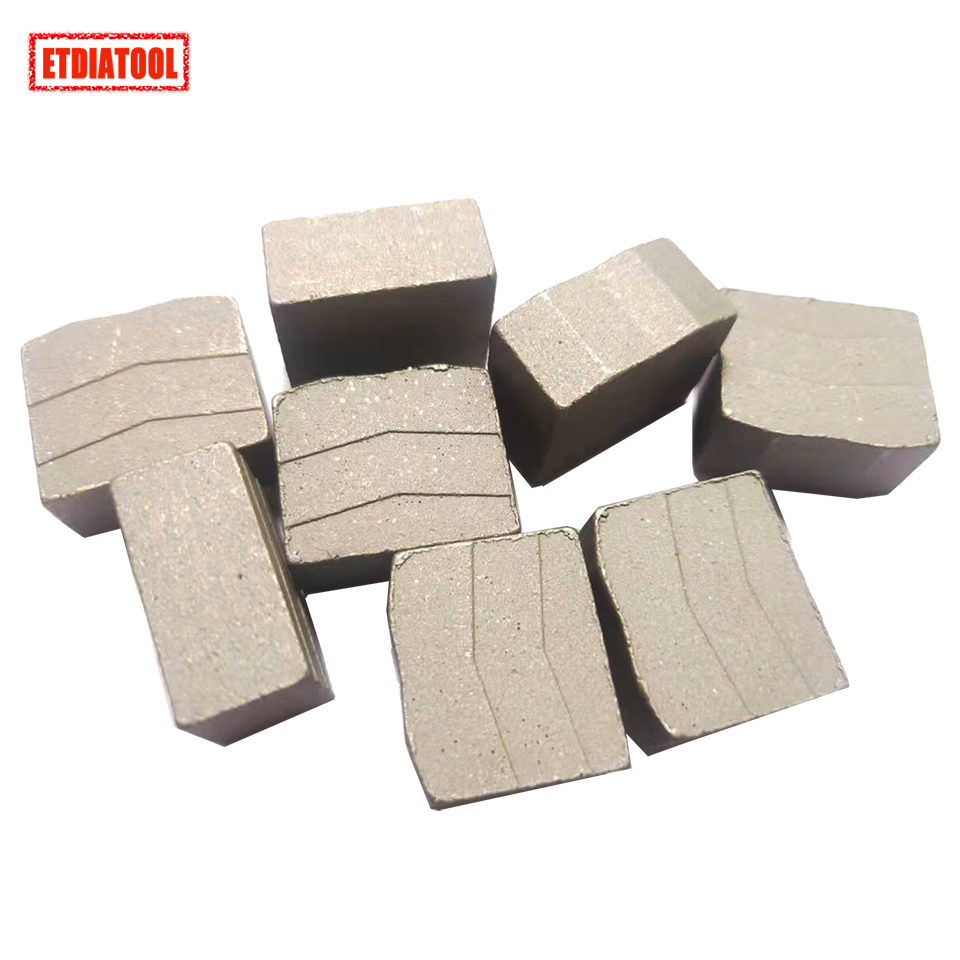

Diamond Segments
Our Diamond Segments is designed according the different cutting materials,it can be divided in Granite/Sandstone Cutting Segments,Marble/Limestone Cutting Segments,Quartz Cutting Segments,Slate Cutting Segments,Concrete Cutting Segments.Also it can be divided in Single Blade Segments and Multi Cutting Segments.
After more than 10 years developping,we have developed the High Cost-Performance segments for the different customers around world.
Products Feature:
Fast & Smooth Cutting
Long Lasting
Customized is Available
OEM is Available
Size Information
| Diameter of Blade(mm) | Segment Size(mm) | Core Thikcness (mm) | Teeth(pcs) | Cutting Materials | ||
| L | W | H | ||||
| 300 | 40 | 3.0 | 8/10/15/20 | 2.0 | 21 | Granite,Marble Sandstone,Limestone, Quartz,Artificial Stone |
| 350 | 40 | 3.0/3.2 | 8/10/15/20 | 2.0/2.2 | 24 | |
| 400 | 40 | 3.4/3.6 | 8/10/15/20 | 2.4/2.6 | 28/29 | |
| 450 | 40 | 3.8 | 8/10/15/20 | 2.8 | 32 | |
| 500 | 40 | 4.2 | 8/10/15/20 | 3.2 | 36 | |
| 550 | 40 | 4.2 | 8/10/15/20 | 3.2 | 40 | |
| 600 | 40 | 4.8 | 8/10/15/20 | 3.8 | 42 | |
| 650 | 40 | 4.8 | 8/10/15/20 | 3.8 | 46 | |
| 700 | 40 | 5.2 | 8/10/15/20 | 4.2 | 50 | |
| 800 | 40 | 5.8 | 8/10/15/20 | 4.8 | 58 | |
| 900 | 24 | 7.0/6.2 | 8/10/15/20 | 5.0 | 64 | |
| 1000 | 24 | 7.4/6.6 | 15/20 | 5.5 | 70 | |
| 1200 | 24 | 15/20 | 6.0 | 80 | ||
| 1400 | 24 | 8.4/7.6 | 15/20 | 6.5 | 88 | |
| 1600 | 24 | 9.2/8.4 | 15/20 | 7.2 | 104 | |
| 2000 | 24 | 11.0/10.0 | 15/20 | 9.0 | 128 | |
| 3000 | 24 | 12.5/11.5 | 20/30 | 10.0 | 160 | |
| 3500 | 24 | 13.5/12.5 | 20/30 | 11.0 | 180 | |
